QSH Type Steam water mixer
■ Product features
QSH type steam water mixer is a new type of environment protective product, which makes water heat by mixing steam and water. The mixer is characteristic of low noise, vibration-free, high heat-exchanging efficiency and low power consumption, which are widely used in heating systems for heating living and production water and systems for warming and thermal deoxidation. The heater consists of jet nozzle, shell body, mesh plate and rings. When water to be heated passes through the Laval jet nozzle, steam is injected into water through holes on the outside tube wall of the jet nozzle, thus making steam and water mix well in high speed so as to heat water.

■ Product type
Type
QSH-4
QSH-6
QSH-8
QSH-10
QSH-12
QSH-16
QSH-20
QSH-24
QSH-32
QSH-40
QSH-48
QSH-64

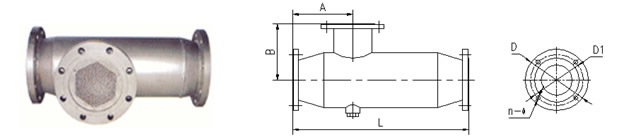

Erecting Size
A
105
130
220
450
B
105
130
170
300
L
240
360
660
1200
Flange to connect water
DN
40
65
125
250
Flange to connect steam
DN
40
65
125
250
Steam consumption of open system (Pressure of saturated steam/0.4Mpa)
                                                                                       Unit: t/h
QSH
4
6
8
10
12
16
20
24
32
40
48
Rated feeding water
1.2
2.5
4.5
7.0
10
16
25
35
60
105
165
Heating temperature difference ℃
20
0.039
0.081
0.146
0.228
0.325
0.520
0.813
1.138
1.951
3.145
5.366
40
0.081
0.188
0.303
0.470
0.672
1.076
1.681
2.353
4.034
7.057
11.092
60
0.125
0.261
0.459
0.730
1.043
1.669
2.609
3.652
6.261
10.952
17.217
80
0.173
0.360
0.649
1.009
1.441
2.306
3.603
5.045
8.649
15.135
23.784
Steam consumption of circular system (Pressure of saturated steam/0.4Mpa)
                                                                                       Unit: t/h
QSH
4
6
8
10
12
16
20
24
32
40
48
Rated feeding water
1.2
2.5
4.5
7.0
10
16
25
35
60
105
165
Heating temperature difference ℃
70-95
0.054
0.112
0.201
0.312
0.446
0.714
1.116
1.562
2.678
4.687
7.366
70-110
0.088
0.183
0.330
0.514
0.734
1.174
1.830
2.569
4.404
7.706
12.110
70-130
0.137
0.286
0.454
0.800
1.143
1.829
2.857
4.000
6.857
12.000
18.857
